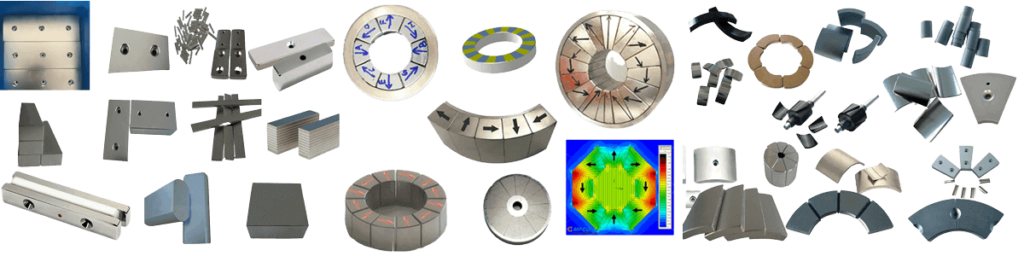

Magnetic Assembly Design Principles: Crafting Efficient and Reliable Solutions for Diverse Applications
Magnetic assemblies are the backbone of countless modern technologies, from electric motors and wireless chargers to sensors and medical devices. Their design requires a meticulous blend of electromagnetic theory, materials science, and mechanical engineering to ensure optimal performance, durability, and cost-effectiveness. Below, we outline the core principles and best practices for creating effective magnetic assemblies, organized around key design considerations.
1. Magnetic Circuit Design Fundamentals
A magnetic circuit governs the generation, distribution, and utilization of magnetic flux (Φ), analogous to an electrical circuit but with magnetic quantities. Key concepts include:
– Magnetomotive Force (MMF, F ): The “driving force” for flux, produced by current-carrying coils ( F = N \cdot I , where N is the number of turns and I is current) or permanent magnets.
– Reluctance ( R ): The opposition to flux flow, defined by R = \frac{l}{\mu A} , where l is path length, \mu is permeability, and A is cross-sectional area. Low-reluctance materials (e.g., soft magnets) minimize energy loss.
– Air Gaps: Critical for applications like actuators or bearings, air gaps increase reluctance and concentrate flux. Their length and shape directly impact flux density ( B = \frac{\Phi}{A} ) and energy efficiency.
Design Best Practices:
– Use Ampère’s Circuital Law to model MMF distribution and ensure closed flux paths, minimizing leakage.
– Prioritize uniform cross-sectional areas in flux-conducting components to reduce series reluctance.
– For permanent magnet (PM) systems, align magnetization direction (axial, radial, or multipole) to reinforce the desired flux pattern (e.g., radial magnetization in brushless motors for consistent torque).
2. Material Selection and Compatibility
Choosing the right materials is pivotal for performance, longevity, and cost. Differentiate between:
– Soft Magnetic Materials (low coercivity, high permeability for efficient flux conduction):
– Silicon Steel: Ideal for low-frequency applications (e.g., transformers, motors) due to low eddy current losses.
– Ferrite (Mn-Zn/Ni-Zn): High resistivity makes them suitable for high-frequency use (inductors, switch-mode power supplies), with lower cost than metallic alloys.
– Permalloy (Ni-Fe): Ultra-high permeability for sensitive sensors or magnetic shielding (e.g., in MRI equipment).
– Hard Magnetic Materials (high coercivity, retain magnetization):
– NdFeB: Highest energy product for compact, high-power applications (e.g., EV motors, robotics) but vulnerable to temperature and corrosion.
– SmCo: Stable up to 300°C, critical for aerospace, industrial, or high-temperature environments.
Key Considerations:
– Temperature Stability: Match material Curie points and temperature coefficients to operating conditions (e.g., NdFeB loses ~0.13% remanence per °C; SmCo is more thermally robust).
– Corrosion Protection: Coat PMs with nickel, epoxy, or parylene to prevent oxidation, especially in humid or saline environments.
– Adhesives and Insulation: Use magnetically neutral, high-temperature materials (e.g., polyimide films, epoxy resins) to avoid flux distortion or mechanical failure.
3. Flux Path Optimization
Maximizing flux efficiency reduces energy waste and enhances performance:
– Magnetic Yokes and Shields: Employ high-permeability yokes (e.g., iron alloys) to close flux loops (e.g., in relays) and low-permeability shields (mu-metal, aluminum) to contain stray fields in sensitive systems (e.g., magnetic resonance sensors).
– Symmetric Geometry: Design radially or axially symmetric assemblies (e.g., toroidal inductors, cylindrical motors) to balance flux distribution and minimize leakage.
– Air Gap Engineering: Shorten gaps to reduce reluctance (e.g., in magnetic bearings) or shape them (e.g., tapered gaps in speakers for linear force response).
– Simulation Tools: Leverage finite-element analysis (FEA) software (ANSYS Maxwell, COMSOL) to model flux density, identify leakage paths, and optimize geometries iteratively.
4. Thermal Management Considerations
Excessive heat degrades magnetic properties (e.g., PM demagnetization, soft magnet saturation) and must be actively managed:
– Sources of Loss:
– Core Losses: Hysteresis (energy to reverse magnetization) and eddy currents (mitigated by laminating cores or using high-resistivity ferrites).
– Copper Losses: Joule heating from winding resistance (improve with litz wire for high-frequency applications or thick copper conductors for low-frequency).
– Friction Losses: In moving parts (e.g., bearings, actuators), addressed via lubrication or low-friction coatings.
– Cooling Strategies:
– Material Choice: Use nanocrystalline alloys for high-temperature stability or copper windings for superior thermal conductivity.
– Structural Design: Integrate heat sinks, thermal vias, or liquid-cooled channels (common in high-power motors or wireless charging pads).
– Thermal Interface Materials (TIMs): Apply gap fillers or thermal greases between components to reduce thermal resistance (e.g., between a PM and its metal housing).
– Monitoring: Include thermal sensors (NTC thermistors, RTDs) in critical systems to enable feedback control and prevent overheating.
5. Mechanical Integration Techniques
A robust mechanical design ensures reliability, ease of assembly, and tolerance to environmental stresses:
– Structural Rigidity: Use FEA to analyze stress concentrations in load-bearing components (e.g., motor frames, sensor housings) and reinforce high-strain areas.
– Tolerance Control: Maintain tight air gap tolerances (e.g., ±5μm in precision sensors) using press fits, alignment fixtures, or adhesive bonding to avoid flux variations.
– Dynamic Applications: Mitigate vibration and shock (e.g., in automotive or aerospace systems) with elastomeric mounts, damping materials, or encapsulated magnets.
– Sealing and Protection: Deploy IP-rated enclosures (e.g., IP68 for submersible devices) and corrosion-resistant surface treatments (zinc-nickel plating, epoxy coatings).
– Modular Design: Adopt standardized interfaces (bolt patterns, quick-connect terminals) for easy maintenance and scalability, critical for industrial or renewable energy systems.
Application-Specific Design Insights
– Electric Motors: Prioritize high-power density (NdFeB magnets, laminated cores) and balanced flux paths for smooth torque production; use skewed rotor slots to reduce cogging torque.
– Wireless Charging: Optimize planar coils with ferrite shields to minimize EMI and enhance coupling efficiency; integrate thermal pads to dissipate coil losses.
– Magnetic Sensors: Use low-noise materials (permalloy, amorphous alloys) and hermetic sealing to protect against electromagnetic interference (EMI) and environmental contaminants.
Conclusion
Effective magnetic assembly design is a multidisciplinary challenge that demands precision in electromagnetic modeling, material selection, thermal management, and mechanical integration. By focusing on flux path efficiency, material compatibility, and robust mechanical engineering, designers can create solutions that excel in performance, reliability, and cost across diverse applications—from微型 sensors to兆瓦级电机. Leveraging advanced simulation tools, adhering to industry standards, and embracing emerging materials (e.g., nanocomposites, metamaterials) will be key to meeting the evolving demands of an electrified, miniaturized, and sustainable future.
Ultimately, the success of a magnetic assembly lies in its ability to translate theoretical principles into practical, real-world solutions—where every magnetic field line is purposefully directed, every material choice is optimized, and every mechanical interface is engineered for resilience.
